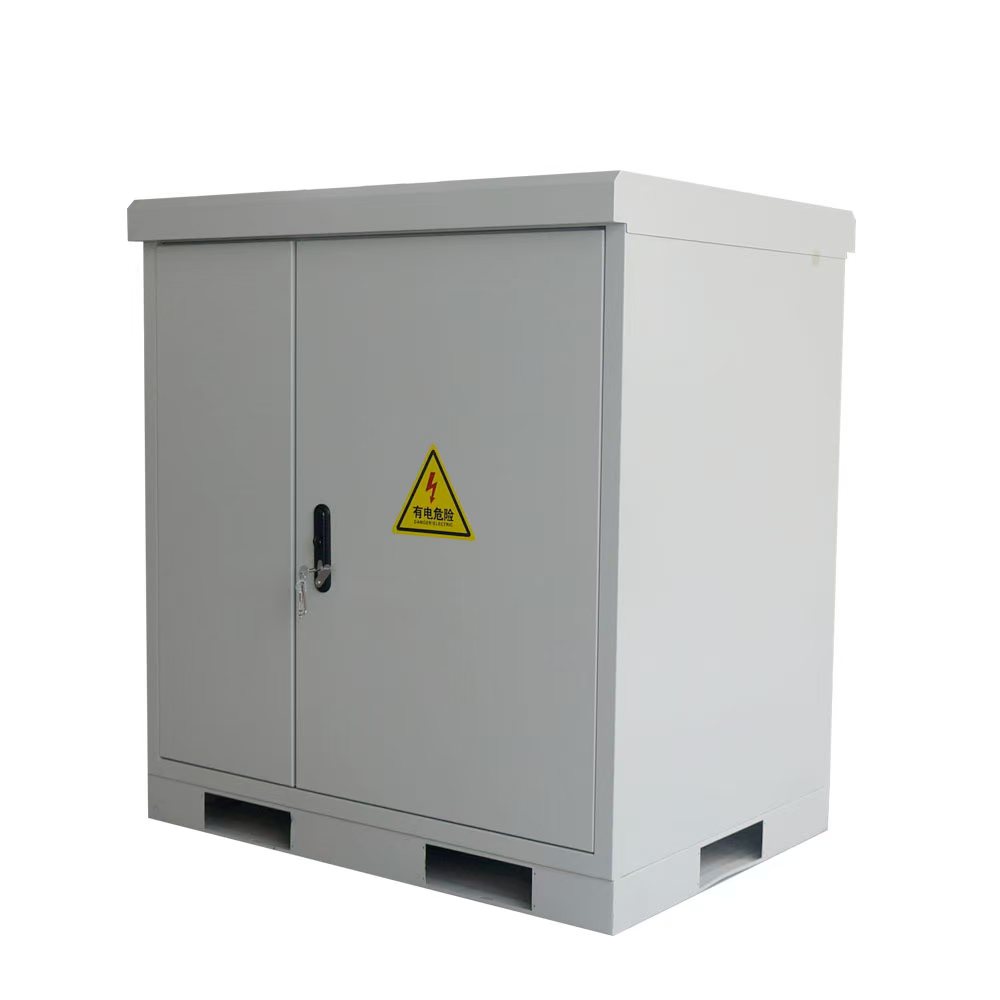

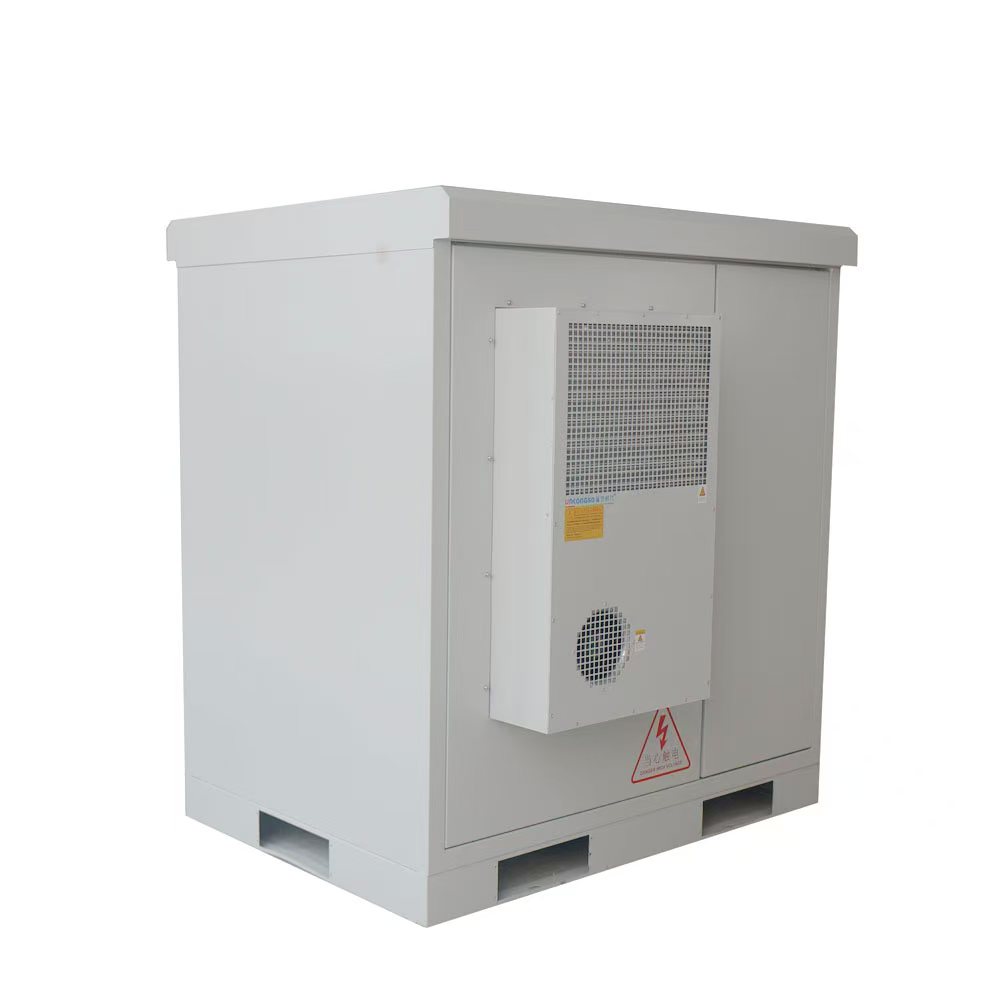

产品介绍/Product Overview：
本产品是针对于广大草原牧区，沙漠、山区，边防哨所，海岛等无电或电力短缺地区的太阳能发电、风力发电、风光互补发电自主设计、生产。
This product is independently designed and manufactured for solar power generation, wind power generation and wind-solar hybrid power generation in vast grassland pastoral areas, deserts, mountainous regions, border outposts, islands and other areas with no power supply or power shortage.
这些地方具有环境恶劣，交通不便，信息交流不便等特点，所以本产品采用最新一代的嵌入式技术开发，以M3（第三代ARM 32位处理器）为主控制芯片，完成整个系统的充电控制、逆变电路控制和系统的保护功能。
These regions are characterized by harsh environments, inconvenient transportation and poor information communication. Therefore, this product is developed with the latest embedded technology, adopting the M3 (3rd-generation ARM 32-bit processor) as the main control chip to realize the charging control, inverter circuit control and system protection functions of the entire system.
本电源产品包含了蓄电池的过充过放保护、光伏输入防反接和防倒灌、防雷和交流输出的短路，过载，过压等保护功能，保护功能都可以排除故障后自动恢复。
This power supply product is equipped with protection functions including battery overcharge and overdischarge protection, photovoltaic input reverse connection prevention and anti-backflow protection, lightning protection, as well as short-circuit, overload and overvoltage protection for AC output. All protection functions can automatically recover after the fault is eliminated.
为了保证产品的运行高稳定性和高可靠性，我们做了大量的老化试验，为设备在各个不同环境中正常使用提供了充足的技术保证。
To ensure high operational stability and reliability of the product, we have carried out extensive aging tests, providing reliable technical guarantee for the normal operation of the equipment in various environments.
产品特点/Product Features：
★ 核心部件均采用国际知名品牌，保证设备的高可靠性
All core components adopt internationally renowned brands to ensure high equipment reliability.
★ 可实现多种能源互补输入
Supports complementary input of multiple energy sources.
★ 蓄电池电子防反接（区别于目前市场保险丝保护）
Electronic reverse connection protection for batteries (different from conventional fuse protection on the market).
★ 保护功能齐全，智能恢复
Complete protection functions with automatic intelligent recovery.
★ 工频环形隔离变压器，空载更小，效率更高
Power frequency toroidal isolation transformer, lower no-load loss and higher efficiency.
★ 模块化设计，方便后期系统扩容
Modular design for convenient later system expansion.
★ LCD液晶屏，显示更清晰，更直观
LCD liquid crystal display for clearer and more intuitive data reading.
★ 纯正弦波输出，带载能力更强，适用范围更广
Pure sine wave output with stronger load capacity and wider application range.
★ 支持并机
Supports parallel operation.
适用范围/Scope of Application：
★ 独立风力发电、太阳能发电电站
Stand-alone wind power and solar power stations
★ 独立牧户风光互补发电系统
Stand-alone wind-solar hybrid power generation system for pastoral households
★ 移动通信基站、高速公路等无人区域的电力供应等
Power supply for unmanned areas such as mobile communication base stations and expressways
★ 沙漠、草原、沿海海岛、偏远山区、边防哨所等电力供应不足或电力短缺的地区
Power supply for areas with insufficient or shortage of electricity, such as deserts, grasslands, coastal islands, remote mountainous areas and border outposts
★ 移动通信基站、高速公路等无人区域的电力供应等
Power supply for unmanned areas including mobile communication base stations and expressways
可添加功能模块/Optional Functional Modules：
★ 市电互补模块
Mains Complementary Module
★ RS232/485 通信模块
RS232/485 Communication Module
★ GPRS 远程数据传输模块
GPRS Remote Data Transmission Module
★ 柴油发电互补模块
Diesel Generator Complementary Module
★ 干接点模块
Dry Contact Module
技术参数/Technical Parameters：
产品型号 Model | DSCI504-384-P2205EM | ||
物理参数 Physical Parameters | 规格/Specifications | 50KW/60KW | |
尺寸/Size | 1200*850*1600mm | ||
重量/Weight | 约450kg/510kg About 450kg/510kg | ||
包装/Package | 木箱/Carton | ||
电气参数 Electrical Parameters | 蓄电池额定电压 Battery Rated Voltage | DC240V~448V | |
额定光伏功率 Rated PV Power | 50KW/60KW | ||
光伏充电方式 PV Charging Mode | MPPT | ||
光伏输入电压 PV input voltage | ≤DC850V | ||
最大充电电流 Max charging current | 100A | ||
充满保护电压 Full Charge Protection Voltage | DC280V~460（Type） | ||
过放保护电压 Over-discharge Protection Voltage | DC216V~364V（Type） | ||
蓄电池防反接方式 Battery Reverse Polarity Protection Mode | 电子式防反接 Electronic Reverse Connection Protection | ||
控制方式 Modulation Mode | SPWM | ||
交流输出电压 AC output voltage | 110/120/220/230/240/400（3W+N）VAC ±5% | ||
输出频率 AC output Frequency | 50/60Hz ±5% | ||
效率 Efficiency | ≤93% | ||
输出电压波形 Output Voltage Waveform | 纯正弦波 Pure sine wave | ||
波形失真率 THD | ≤3%（线性负载） ≤3%（Linear Load） | ||
逆变电路拓扑结构 Inverter Circuit Topology | 全桥 Full Bridge Topology | ||
电压调整率 Voltage Regulation | ±2% | ||
负载调整率 Load Regulation | ±4% | ||
冷却方式 Cooling Mode | 强制风冷 Forced Air Cooling | ||
显示方式 Display Model | LCD | ||
空载损耗 No-load Loss | 4.5A | ||
噪声 Noise | 60dB | ||
绝缘电阻 Insulation Resistance | 20MΩ | ||
介电强度 Dielectric Strength | 交流1500V，1min 不击穿 AC 1500V, 1min, No Breakdown | ||
负载等级 Load Grade | 100% | 连续/Continuous | |
125% | 20s | ||
150% | 1s | ||
保护功能 Protection Function | 蓄电池反接保护 —Battery Reverse Connection Protection 太阳能电池反接保护 —PV Reverse Connection Protection 蓄电池过 / 欠压保护—Battery Overvoltage / Undervoltage Protection 短路保护 — Short Circuit Protection 过流保护 — Overcurrent Protection 过载保护 —Overload Protection 过热保护 —Overheating / Over Temperature Protection 防雷保护 —Lightning Protection | ||
是否支持并机 Parallel Operation Support | 是 Yes | ||
联网方式 Networking Mode | WIFI/以太网 WIFI/Ethernet | ||
反向充电功能 Reverse Charging Function | 支持 Support | ||
支持柴发启停 Automatic generator start/stop | 支持 Support | ||
交流输入功率 AC Input Power | ≤50KW/60KW | ||
工作环境温度 Operating Ambient Temperature | -10℃-50℃ | ||
储存环境温度 Storage Ambient Temperature | ≤90%，不凝露/Non-condensing | ||
使用时间 Continuous Usage Time | 长期连续（蓄电池容量大小决定） Long-term Continuous Operation (Depends on Battery Capacity) | ||
为更好的服务市场，我公司可提供定向生产！ To better serve the market, we support customized dedicated production. | |||
产品如有更新，恕不另行通知！
Product updates shall be made without further notice.
