Wind Turbine Charge Controller, 12V/24V/48V Auto Recognition （PWM）

一、Product overview

     DWC series wind power charge controller is designed for small wind power development of the latest charge controller, it has smaller size, easy to install, the use of aluminum profiles, can be very good use of shell cooling, further to the high integration and miniaturization, the new generation of controller with charging instructions, manual brake and other functions, to meet the actual needs of more customers. The circuit uses the parallel type unloading design, can better protect the wind turbine and the battery, the components adopt pure imported IR integrated chip and power components. Advanced design, high quality imported components is a strong guarantee for product stability and reliability.

   Model:

D   W  C 0615 - A

                      Auto

                       Rated power

                       Controller

                                Wind

                         DELOP^®

Product features:

 ♠  Wind power charge controller

 ♠  12V/24V/48V Automatic recognition technology

 ♠  Three phase soft brake technology, more perfect protection of the wind turbine

 ♠  Manual brake function, emergency case, ensure system security

 ♠  New battery back protection, more adapted to the use of the field conditions of the multi variability

 ♠  Work,Charge, Charge-full of LED status indicator, more intuitive display

二 Electrical connection

NOTE:

1、When see the controller, please sure there is no damage. If have , please contact the supplier in time.

2、Select the corresponding working voltage of the battery, the correct connection and positive and negative pole, is strictly prohibited!

3、Connecting the conductor of the wind turbine, the three line of the wind turbine is not in order.

4、The controller manually switch to the "Run". Charging system will be running.

Wiring diagram:

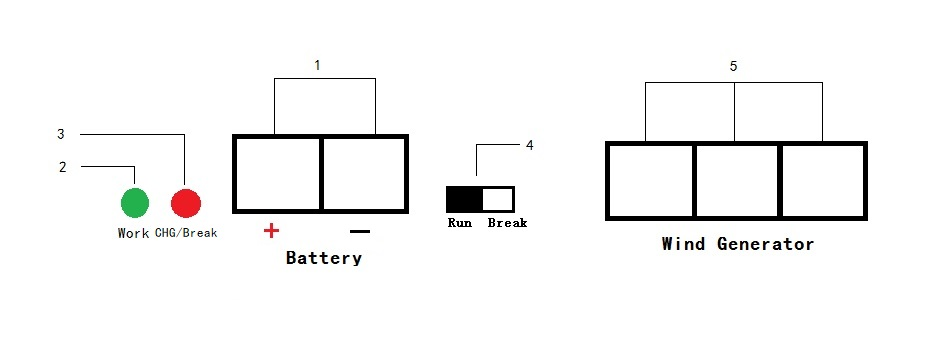

1 ’a’ is Controller terminal connection diagram.

Digital description:

‘1’ is the positive and negative electrode of the battery,This controller is equipped with battery anti-reverse connection function,If the battery is positively negative, the controller will not have any display,When the battery is properly connected, wait about 10 seconds and the controller CHG/Break indicator will flash.

Flicker times and corresponding battery rated voltage refer to the table below:

‘2’is the green led,when the system is working,led will be lit.

‘3’is the CHG/Break led,when battery will be charging and the current more than 1A,the LED will be GREEN,and if the battery Charge-Full or switch is on”Break”or the controller temperature over 70℃ the LED will be RED..

‘4’is emergency switch,the switch is on ’Break’,the system is in an emergency breaking state,as the same time the CHG/Break led will be RED.the switch is on ’Run’ site,the controller is in normal charge state.

‘5’is the connecting end of the wind generator which is connected with the three wire of the wind generator in turn, such as the direct generator or the single generator, will be connected with two of the three terminals. The controller is compatible with the market on the three-phase, single-phase and DC wind generator.This controller has a simpler operation.

三 Main technical parameters

四 Troubleshooting
