可选功能/Optional Functions：
♠ 市电切换模块
Mains switching module
♠ 直流输出模块（通信基站）
DC output module (communication base station)
♠ 干接点信号模块 (适用于变桨风机控制)
Dry contact signal module (applicable to pitch wind turbine control)
♠ RS485/GPRS/WIFI/ 以太网
RS485 / GPRS / WIFI / Ethernet
应用领域/Application Fields：
♠ 独立风光互补发电电站
Standalone wind-solar hybrid power station
♠ 独立户用风光互补发电系统
Standalone household wind-solar hybrid power generation system
♠ 移动通信基站、高速公路等无人区域的电力供应等
Power supply for unattended areas such as mobile communication base stations and expressways
♠ 沿海海岛、偏远山区、边防哨所等电力供应不足或电力短缺的地区
Power supply for areas with insufficient or shortage of electricity, such as coastal islands, remote mountainous areas and border outposts
♠ 政府示范工程、景观照明工程、路灯工程等
Government demonstration projects, landscape lighting projects, street lamp projects, etc.
♠ 移动通信基站、高速公路等无人区域的电力供应等
Power supply for unattended areas such as mobile communication base stations and expressways
友情提示/Friendly Reminder：
客户在订购高性能风光互补控制器时，需提供以下资料：
Customers shall provide the following information when ordering the high-performance wind-solar hybrid controller:
♠ 额定的蓄电池电压
Rated battery voltage
♠ 额定的太阳能功率
Rated solar power
♠ 额定的风机输出功率
Rated wind turbine output power
♠ 风机是三相交流、单相直流还是单相交流
Wind turbine type: three-phase AC, single-phase DC or single-phase AC

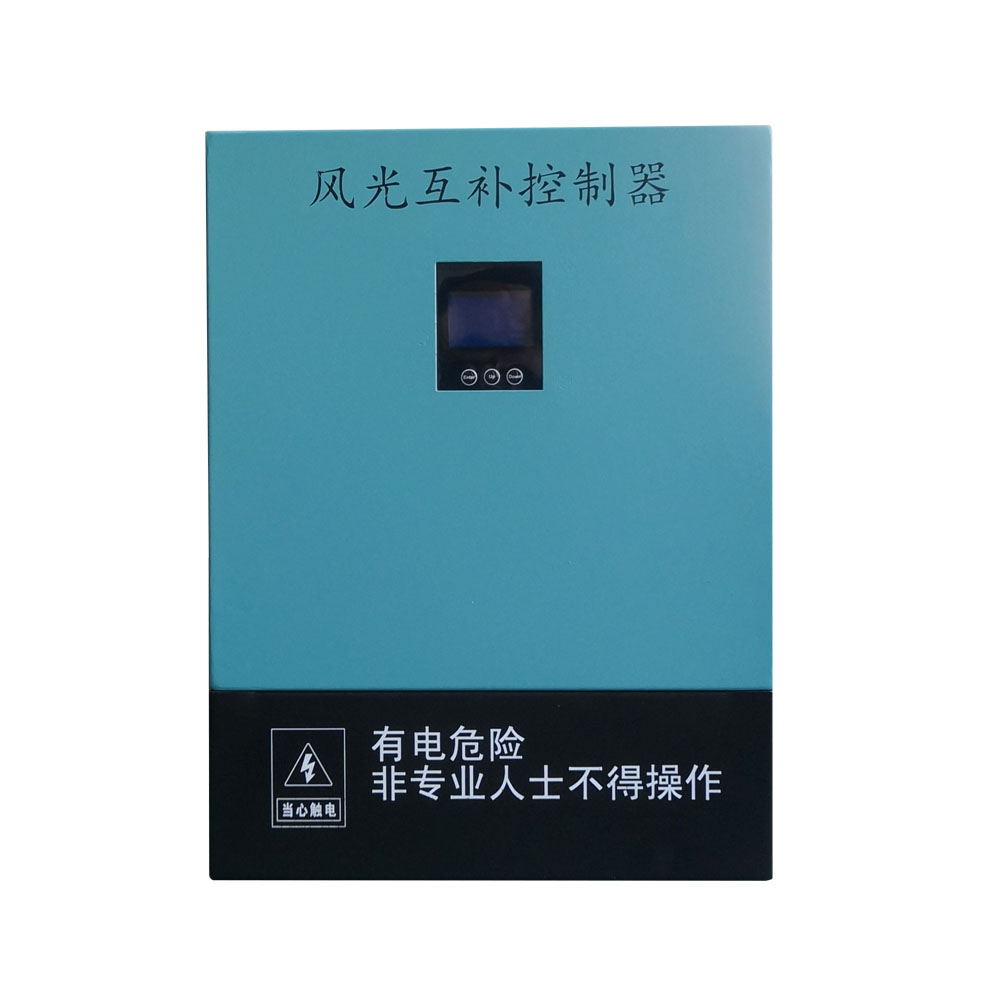

技术参数/Technical Parameters
型号 Model | DWSC103-24 | DWSC103-48 |
风力发电机额定功率 Rated Power of Wind Turbine | 1kW | |
太阳能额定功率 PV Rated Power | 3KW | |
蓄电池额定电压 Rated Battery Voltage | 24V | 48V |
风机最大输入电流 Max Wind Turbine Current | 80A | 40A |
风机最大输入功率 Max wind turbine power | 2kW | |
卸载开始电压（出厂值） Unload Start Voltage (Factory Default) | 28V | 56V |
卸载开始电流（出厂值） Unload Start Current (Factory Default) | 50A | 25A |
卸载控制方式 Unload Control Mode | PWM | |
充电方式 Charging Mode | PWM | |
操作方式 Operation Mode | Key | |
显示方式 Display mode | LCD | |
显示内容 Display Content | 蓄电池电压 — Battery Voltage 风机电压 — Wind Turbine Voltage 光伏电压 — PV Voltage 风机电流 — Wind Turbine Current 光伏电流 — PV Current 累计发电量 — Cumulative Power Generation 实时温度显示 — Real-time Temperature Display | |
工作温湿度范围 Operating Temperature and Humidity Range | -20~+50℃/35~85%RH（无结露） -20～+50℃ / 35～85%RH (Non-condensing) | |
温度补偿（可选） Temperature Compensation (Optional) | 4mV/℃/2V ,–35℃--+80℃ ,±1℃ | |
保护类型 Protection Type | 太阳能电池防反充—PV battery anti-reverse charging 太阳能电池防反接—PV panel reverse connection protection 蓄电池过充—Battery overcharge protection 防雷 — Lightning protection 风机限流—Wind turbine current limiting 风机自动刹车和手动刹车—Wind turbine automatic brake and manual brake | |
接线方式/Wiring Method | 压线排/Crimping Type | |
使用环境温度 Ambient Operating Temperature | －20～＋55℃ | |
使用海拔 Operating Altitude | ≤5500 M | |
尺寸/size | 400×330×130mm | |
散热方式/Cooling Mode | 强制风冷/Forced Air Cooling | |
可根据客户不同需求，定制相应功能！购买前请确认产品参数。使用前请仔细阅读说明书 Functions can be customized according to customers' different requirements! Please confirm product parameters before purchase. Please read the instruction manual carefully before use. | ||
注：本公司保留产品变更权利，产品更新恕不另行通知。
Note: The company reserves the right to modify product specifications without prior notice.
