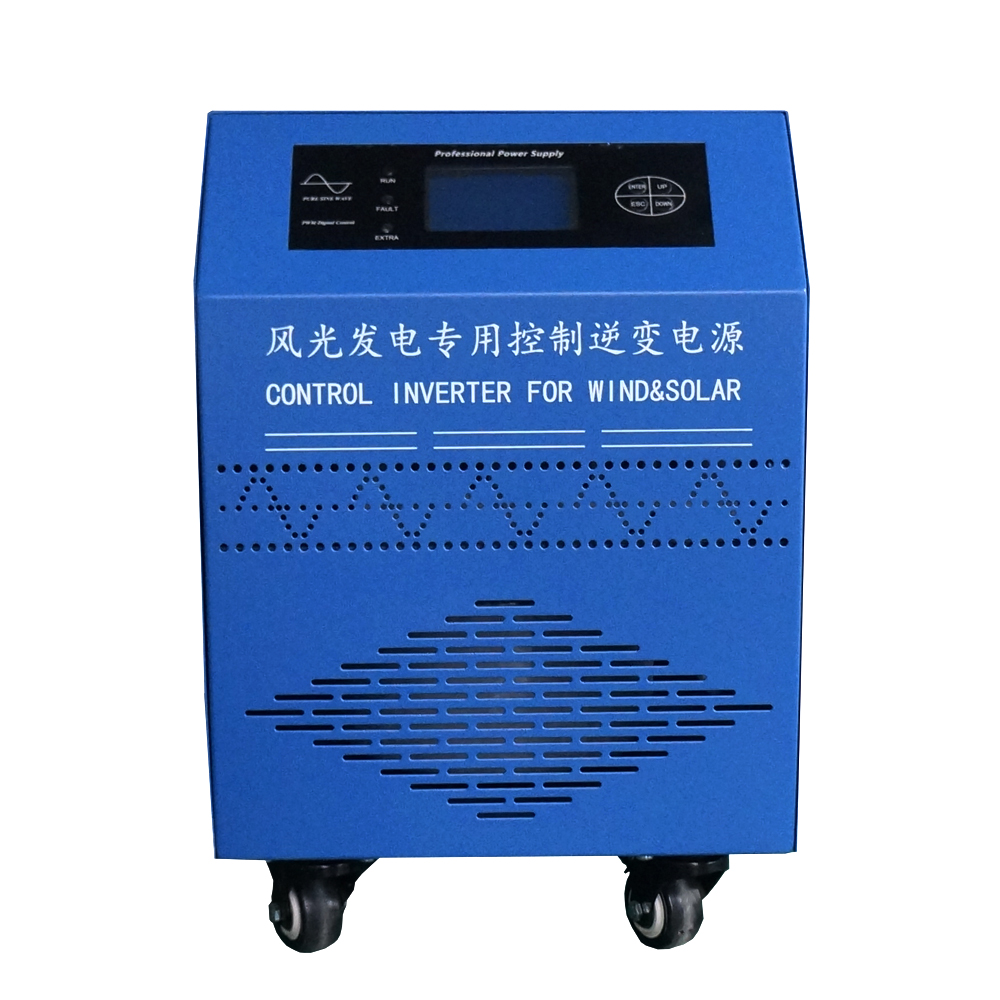

产品特点：/Product Features:
本电源采用STM32 系列(M3)专用微处理器(MCU)控制，主电路采用国际知名的大功率MOSFET或英飞凌/三菱/富士等国际名牌智能功率IGBT模块(IPM),输出220v50Hz纯正弦波,具有瞬态响应好、波形失真小、输出电压稳定等特点,并同时具有优良的EMI指标。
This power supply is controlled by STM32 (M3) dedicated MCU.The main circuit adopts high-power MOSFET or premium IPM modules from Infineon, Mitsubishi and Fuji.It provides 220V 50Hz pure sine wave output, featuring fast transient response, low waveform distortion, stable voltage output and excellent EMI performance.
本电源采用液晶屏显示，风光互补混合输入，设有直流输入过、欠压保护,直流输入极性接反保护,交流输出过电压、过功率、短路保护,机内过热保护，电池充满自动保护、电池下降自动恢复重新充电等一系列保护措施,使电源的各项性能指标和可靠性具有足够的技术保证。
This power supply is equipped with LCD display and supports wind-solar hybrid input. It is built with complete protection functions: DC input overvoltage/undervoltage protection, DC reverse polarity protection, AC output overvoltage, over-power and short-circuit protection, as well as internal overheating protection. It also supports full battery automatic protection and automatic recharge recovery at low battery voltage. The comprehensive protection design ensures excellent performance and high reliability of the unit.
风光输入均采用独立的PWM无极卸荷，两路独立控制，独立卸荷，互不影响。以便有有效的延长蓄电池的使用寿命和提升系统的储能能力。
Both wind and solar inputs adopt independent PWM stepless load shedding. The two channels feature separate control and independent load shedding without mutual interference, effectively extending battery service life and improving the energy storage capacity of the system.
♠ 无线互联网连接，终端/PC端小程序实时查看
Wireless Internet connection, real-time viewing via terminal/PC applet
♠ 风光互补输入
Wind-solar hybrid input
♠ 工频环形隔离变压输出，具有更小的空载损耗和更高的效率
Power-frequency toroidal isolation transformer output with lower no-load loss and higher efficiency
♠ 输出 220V 50Hz 纯正弦波(110V 60Hz)
220V 50Hz(110V 60Hz) pure sine wave output
♠ 电压、电流、系统状态实时指示
Real-time indication of voltage, current and system operating status
♠ 多方位全自动保护与 PWM 控制系统
Multi-dimensional full-automatic protection and PWM control system
♠ 专设蓄电池充满 PWM 无级卸荷与报警
Dedicated PWM stepless load shedding and alarm function upon battery full charge
♠ 液晶屏数显风光互补发电专用一体机
LCD digital display, all-in-one unit dedicated for wind-solar hybrid power generation
♠ 符合国家标准 GB/T19064-2003、GB/T19115.1-2003、GB/T20321.1-2006
Compliant with National Standards: GB/T19064-2003, GB/T19115.1-2003, GB/T20321.1-2006

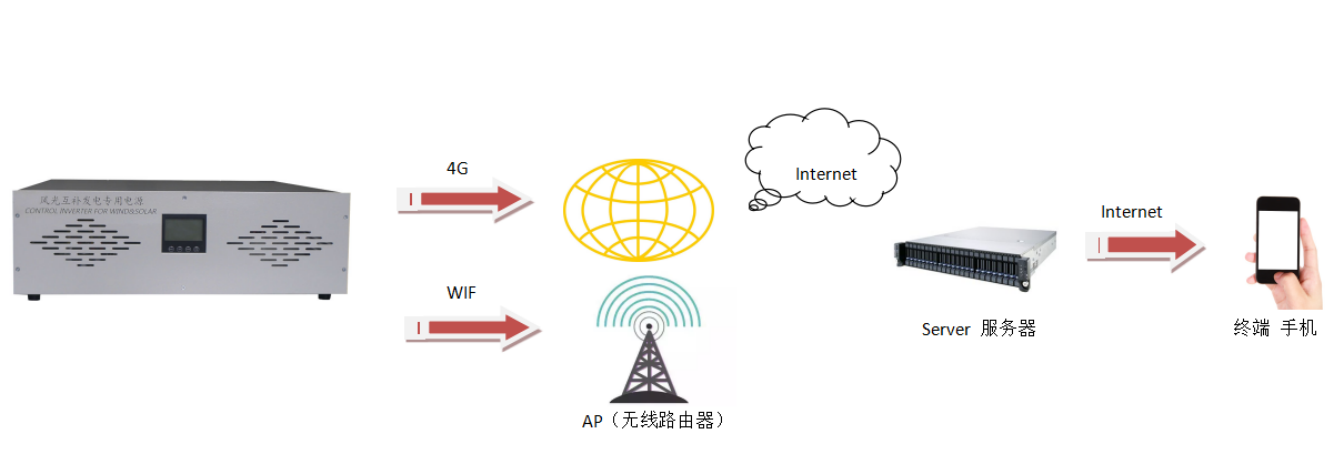

设备联网流程示意图：/Device Networking Flow Schematic
应用领域 Application Fields
♠ 独立风光互补发电电站
Independent wind-solar hybrid power station
♠ 独立户用风光互补发电系统
Residential standalone wind-solar hybrid power system
♠ 移动通信基站、高速公路等无人区域的电力供应
Power supply for unattended areas such as mobile communication base stations and expressways
♠ 沿海海岛、偏远山区、边防哨所等电力供应不足或电力短缺的地区
Power supply for areas with insufficient power supply such as coastal islands, remote mountainous areas and border outposts
♠ 政府示范工程、景观照明工程、路灯工程等
Government demonstration projects, landscape lighting projects, street lamp projects, etc.
♠ 草原牧区、森林防火等电力供应
Power supply for pastoral areas and forest fire prevention
友情提示 Friendly Reminder
客户在订购风光互补控制逆变一体机时，需提供以下资料：
Please provide the following information when ordering the wind-solar hybrid control and inverter all-in-one machine:
♠ 额定的蓄电池电压
Rated battery voltage
♠ 额定的太阳能功率
Rated solar power
♠ 额定的风力发电机功率，风机是单向还是三相
Rated wind turbine power; single-phase or three-phase wind turbine
♠ 交流输出是单相还是三相
Single-phase or three-phase AC output
♠ 逆变器的额定输出功率；额定输出电压；额定输出频率
Inverter rated output power, rated output voltage and rated output frequency
♠ 负载性质：是阻性负载还是感性负载
Load type: resistive load or inductive load
♠ 是否带市电互补功能：额定交流输入的电压和频率
Whether mains complementary function is required; rated AC input voltage and frequency
可添加功能模块：/Optional Functional Modules
★ 市电互补模块
Mains Complementary Module
★ 互联网模块（WIFI/4G/GPRS）
Internet Module (WIFI/4G/GPRS)
主要技术参数/Main Technical Parameters
规格/型号 Model / Specification | 3KW/4KW/5KW | |
联网部分 Networking Section | ||
联网方式 Networking Mode | 无线联网/以太网 Wireless Network / Ethernet | |
联网模块 Networking Module | 以太网（有线/WIFI）/4G（二选一） Ethernet (Wired/WIFI) / 4G (One of the two optional) | |
控制器部分 Controller Section | ||
控制器类型 Controller Type | 脉宽调制型 Pulse Width Modulation Type | |
光伏组件最大输入功率 PV Input Max Power | 3000W | |
风机额定输入额定功率 Wind Turbine Rated Input Power | 1.5KW | |
卸荷器功率： Dump Load Power | 2KW | |
蓄电池额定电压 Rated Battery Voltage | 48V/51.2V | 96V/102.4V |
光伏组件最大输入电压 PV input Max Voltage | 150V | 200V |
蓄电池均充电压 Equalization Charge Voltage | 57V(Type) | 114V(Type) |
逆变器部分 | ||
蓄电池额定电压 Rated Battery voltage | 48V51.2V | 96V/102.4V |
逆变器额定功率 Inverter Rated Power | 4KW /5KW/6KW | |
额定输出电压 Rated Output Voltage | 110/120/220/230/240 VAC | |
额定输出频率 Rated Output Frequency | 50/60 Hz±0.05Hz | |
输出波形 Output Wave | 纯正弦波 Pure sine wave | |
显示方式 Display Mode | LCD | |
波形失真率（THD） | ≤3%（线性负载/Line Load） | |
逆变器整机效率 Overall Efficiency | ≤94% | |
逆变器电路拓扑结构 Inverter Circuit Topology | 全桥式 Full Bridge | |
电压调整率 Voltage Regulation Rate | ±2% | |
负载调整率 Load Regulation Rate | ±4% | |
空载损耗 No-load Loss | 0.5A±0.15A | |
逆变器输入过压保护 Inverter Input Overvoltage Protection | 60V(Type) | 120V(Type) |
过载保护 Overload Protection | 100%≤负载≤125% 2分钟 100%≤Load≤125% 2min | |
120%≤负载≤150% 20秒 120%≤Load≤150% 20s | ||
负载≥150% 10秒 Load≥150% 10s | ||
蓄电池过放保护电压 Over-discharge Protection | 43.2V(Type) | 86.4V(Type) |
绝缘强度 Insulation Strength | 1500V 1min | |
保护功能 Protection Functions | 过压、欠压、过流、过温、过载、短路、防雷、防反接、防浪涌 Overvoltage, Undervoltage, Overcurrent, Overtemperature, Overload, Short Circuit, Lightning Protection, Reverse Connection Protection, Surge Protection | |
使用环境 Operating Environment | 干燥、清洁、通风、无易燃、易爆、易腐蚀气体 Dry, clean and well-ventilated, free of flammable, explosive and corrosive gases 温度：-20°～+50°C Temperature: -20℃～+50℃ 湿度：≤90%（无结露） Humidity: ≤90% (non-condensing) | |
重量（Kg） Weight | 35kg/40kg/50kg | |
机器尺寸 Size | 净尺寸：540*300*450mm（长宽高） Net Size:540*300*450mm(L*W*H) | |
为了更好的服务于客户，我公司可根据客户要求调整和配置参数。 To better serve customers, our company can adjust and configure technical parameters according to customer requirements. | ||
注：本公司保留产品变更权利，产品更新恕不另行通知。
Note: Our company reserves the right to modify the product design and specifications without prior notice.
